S-5-T
[ihc-hide-content ihc_mb_type=”show” ihc_mb_who=”reg” ihc_mb_template=”” ]
| Min Quantity | Max Quantity | price / per |
|---|---|---|
| 1001 | * | $6.25 |
| 501 | 1000 | $6.89 |
| 151 | 500 | $7.26 |
| 51 | 150 | $7.95 |
| 1 | 50 | $8.23 |
[/ihc-hide-content]

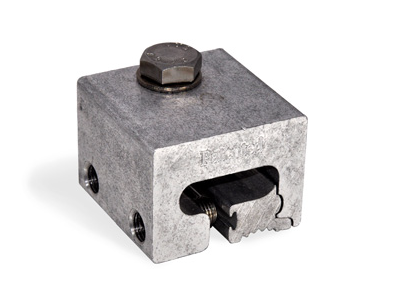

The S-5-T clamp is specially developed to fit profiles having a “T” shaped seam configuration.
Description

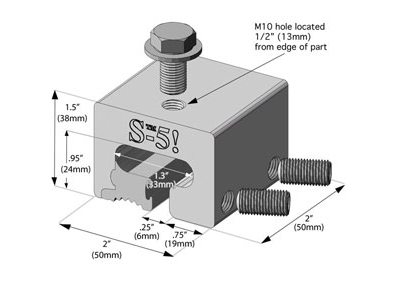

The S-5-T clamp is specially developed to fit profiles having a “T” shaped seam configuration. It will also work on architectural “single-fold,” or “angle-seam” profiles having a horizontal projection of 5/8” or less. Its two-piece design allows it to be easily installed anywhere along the length of the panel seam.
The S-5-T is perfect for S-5!™ snow retention products and other heavy-duty applications.
Each box contains:
- 48 S-5-T Clamps (6061 T6 Aluminum)
- 97 Setscrews (3/8″-24x.800 18-8 SS)
- 49 M10 bolts (M10-1.5x16mm a2 SS)
- 49 M10 washers (300 Series 18-8 SS)
- 1 Hex bit tip (for setscrews)
